The verification key is responsible for storing the commitments to the precomputed (non-witnessk) polynomials used by the verifier. More...

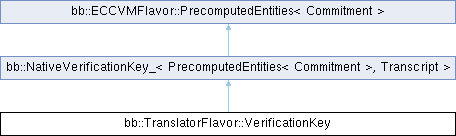

Inheritance diagram for bb::TranslatorFlavor::VerificationKey:

Public Types
using	MSGPACK_NO_STATIC_CHECK = std::true_type

Public Types inherited from bb::NativeVerificationKey_< PrecomputedEntities< Commitment >, Transcript >
using	Commitment = typename PrecomputedCommitments::DataType

Public Types inherited from bb::ECCVMFlavor::PrecomputedEntities< Commitment >
using	DataType = Commitment

Public Member Functions
	VerificationKey ()

	VerificationKey (const std::shared_ptr< ProvingKey > &proving_key)

std::vector< fr >	to_field_elements () const override
	Serialize verification key to field elements.

fr	hash_through_transcript (const std::string &domain_separator, Transcript &transcript) const override
	Unused function because vk is hardcoded in recursive verifier, so no transcript hashing is needed.

	MSGPACK_FIELDS (num_public_inputs, pub_inputs_offset, ordered_extra_range_constraints_numerator, lagrange_first, lagrange_last, lagrange_odd_in_minicircuit, lagrange_even_in_minicircuit, lagrange_result_row, lagrange_last_in_minicircuit, lagrange_masking, lagrange_mini_masking, lagrange_real_last)

Public Member Functions inherited from bb::NativeVerificationKey_< PrecomputedEntities< Commitment >, Transcript >
bool	operator== (const NativeVerificationKey_ &) const=default

virtual	~NativeVerificationKey_ ()=default

	NativeVerificationKey_ ()=default

	NativeVerificationKey_ (const size_t circuit_size, const size_t num_public_inputs)

fr	hash () const
	A model function to show how to compute the VK hash(without the Transcript abstracting things away)

Public Member Functions inherited from bb::ECCVMFlavor::PrecomputedEntities< Commitment >
bool	operator== (const PrecomputedEntities &other) const=default

	DEFINE_FLAVOR_MEMBERS (DataType, lagrange_first, lagrange_second, lagrange_last)

DataType	get_selectors ()

Additional Inherited Members
Public Attributes inherited from bb::NativeVerificationKey_< PrecomputedEntities< Commitment >, Transcript >
uint64_t	log_circuit_size

uint64_t	num_public_inputs

uint64_t	pub_inputs_offset

Detailed Description

The verification key is responsible for storing the commitments to the precomputed (non-witnessk) polynomials used by the verifier.

Note: Note the discrepancy with what sort of data is stored here vs in the proving key. We may want to resolve that, and split out separate PrecomputedPolynomials/Commitments data for clarity but also for portability of our circuits.

Definition at line 754 of file translator_flavor.hpp.

Member Typedef Documentation

using bb::TranslatorFlavor::VerificationKey::MSGPACK_NO_STATIC_CHECK = std::true_type

Definition at line 819 of file translator_flavor.hpp.

bb::TranslatorFlavor::VerificationKey::VerificationKey ( )

inline

Definition at line 761 of file translator_flavor.hpp.

bb::TranslatorFlavor::VerificationKey::VerificationKey ( const std::shared_ptr< ProvingKey > & proving_key )

inline

Definition at line 773 of file translator_flavor.hpp.

fr bb::TranslatorFlavor::VerificationKey::hash_through_transcript	(	const std::string &	domain_separator,
		Transcript &	transcript
	)		const

inlineoverridevirtual

Unused function because vk is hardcoded in recursive verifier, so no transcript hashing is needed.

Parameters

domain_separator
transcript

Definition at line 812 of file translator_flavor.hpp.

bb::TranslatorFlavor::VerificationKey::MSGPACK_FIELDS	(	num_public_inputs	,
		pub_inputs_offset	,
		ordered_extra_range_constraints_numerator	,
		lagrange_first	,
		lagrange_last	,
		lagrange_odd_in_minicircuit	,
		lagrange_even_in_minicircuit	,
		lagrange_result_row	,
		lagrange_last_in_minicircuit	,
		lagrange_masking	,
		lagrange_mini_masking	,
		lagrange_real_last
	)
