The verification key is responsible for storing the commitments to the precomputed (non-witnessk) polynomials used by the verifier. More...

#include <ultra_keccak_flavor.hpp>

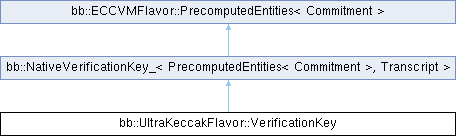

Inheritance diagram for bb::UltraKeccakFlavor::VerificationKey:

Public Types
using	MSGPACK_NO_STATIC_CHECK = std::true_type

Public Types inherited from bb::NativeVerificationKey_< PrecomputedEntities< Commitment >, Transcript >
using	Commitment = typename PrecomputedCommitments::DataType

Public Types inherited from bb::ECCVMFlavor::PrecomputedEntities< Commitment >
using	DataType = Commitment

Public Member Functions
	VerificationKey ()=default

	VerificationKey (const size_t circuit_size, const size_t num_public_inputs)

	VerificationKey (const PrecomputedData &precomputed)

	MSGPACK_FIELDS (log_circuit_size, num_public_inputs, pub_inputs_offset, q_m, q_c, q_l, q_r, q_o, q_4, q_lookup, q_arith, q_delta_range, q_elliptic, q_memory, q_nnf, q_poseidon2_external, q_poseidon2_internal, sigma_1, sigma_2, sigma_3, sigma_4, id_1, id_2, id_3, id_4, table_1, table_2, table_3, table_4, lagrange_first, lagrange_last)

Public Member Functions inherited from bb::NativeVerificationKey_< PrecomputedEntities< Commitment >, Transcript >
bool	operator== (const NativeVerificationKey_ &) const=default

virtual	~NativeVerificationKey_ ()=default

	NativeVerificationKey_ ()=default

	NativeVerificationKey_ (const size_t circuit_size, const size_t num_public_inputs)

virtual std::vector< typename Transcript::DataType >	to_field_elements () const
	Serialize verification key to field elements.

fr	hash () const
	A model function to show how to compute the VK hash(without the Transcript abstracting things away)

virtual Transcript::DataType	hash_through_transcript (const std::string &domain_separator, Transcript &transcript) const
	Hashes the vk using the transcript's independent buffer and returns the hash.

Public Member Functions inherited from bb::ECCVMFlavor::PrecomputedEntities< Commitment >
bool	operator== (const PrecomputedEntities &other) const=default

	DEFINE_FLAVOR_MEMBERS (DataType, lagrange_first, lagrange_second, lagrange_last)

DataType	get_selectors ()

Static Public Attributes
static constexpr size_t	VERIFICATION_KEY_LENGTH

Additional Inherited Members
Public Attributes inherited from bb::NativeVerificationKey_< PrecomputedEntities< Commitment >, Transcript >
uint64_t	log_circuit_size

uint64_t	num_public_inputs

uint64_t	pub_inputs_offset

Detailed Description

The verification key is responsible for storing the commitments to the precomputed (non-witnessk) polynomials used by the verifier.

Note: Note the discrepancy with what sort of data is stored here vs in the proving key. We may want to resolve that, and split out separate PrecomputedPolynomials/Commitments data for clarity but also for portability of our circuits.

Definition at line 73 of file ultra_keccak_flavor.hpp.

Member Typedef Documentation

◆ MSGPACK_NO_STATIC_CHECK

using bb::UltraKeccakFlavor::VerificationKey::MSGPACK_NO_STATIC_CHECK = std::true_type

Definition at line 97 of file ultra_keccak_flavor.hpp.

Constructor & Destructor Documentation

◆ VerificationKey() [1/3]

bb::UltraKeccakFlavor::VerificationKey::VerificationKey ( )

default

◆ VerificationKey() [2/3]

bb::UltraKeccakFlavor::VerificationKey::VerificationKey	(	const size_t	circuit_size,
		const size_t	num_public_inputs
	)

inline

Definition at line 80 of file ultra_keccak_flavor.hpp.

◆ VerificationKey() [3/3]

bb::UltraKeccakFlavor::VerificationKey::VerificationKey ( const PrecomputedData & precomputed )

inline

Definition at line 84 of file ultra_keccak_flavor.hpp.

Member Function Documentation

◆ MSGPACK_FIELDS()

bb::UltraKeccakFlavor::VerificationKey::MSGPACK_FIELDS	(	log_circuit_size	,
		num_public_inputs	,
		pub_inputs_offset	,
		q_m	,
		q_c	,
		q_l	,
		q_r	,
		q_o	,
		q_4	,
		q_lookup	,
		q_arith	,
		q_delta_range	,
		q_elliptic	,
		q_memory	,
		q_nnf	,
		q_poseidon2_external	,
		q_poseidon2_internal	,
		sigma_1	,
		sigma_2	,
		sigma_3	,
		sigma_4	,
		id_1	,
		id_2	,
		id_3	,
		id_4	,
		table_1	,
		table_2	,
		table_3	,
		table_4	,
		lagrange_first	,
		lagrange_last
	)

Member Data Documentation

◆ VERIFICATION_KEY_LENGTH

constexpr size_t bb::UltraKeccakFlavor::VerificationKey::VERIFICATION_KEY_LENGTH

staticconstexpr

Initial value:

=
             (3 * num_elements_fr) +
             (NUM_PRECOMPUTED_ENTITIES * num_elements_comm)

Definition at line 75 of file ultra_keccak_flavor.hpp.

The documentation for this class was generated from the following file:

src/barretenberg/flavor/ultra_keccak_flavor.hpp
